CP NOZZLES & CHECK VALVES - Scroll down for flow rates and flow charts
Product
Part #
Description
CP-11TT

CP-06

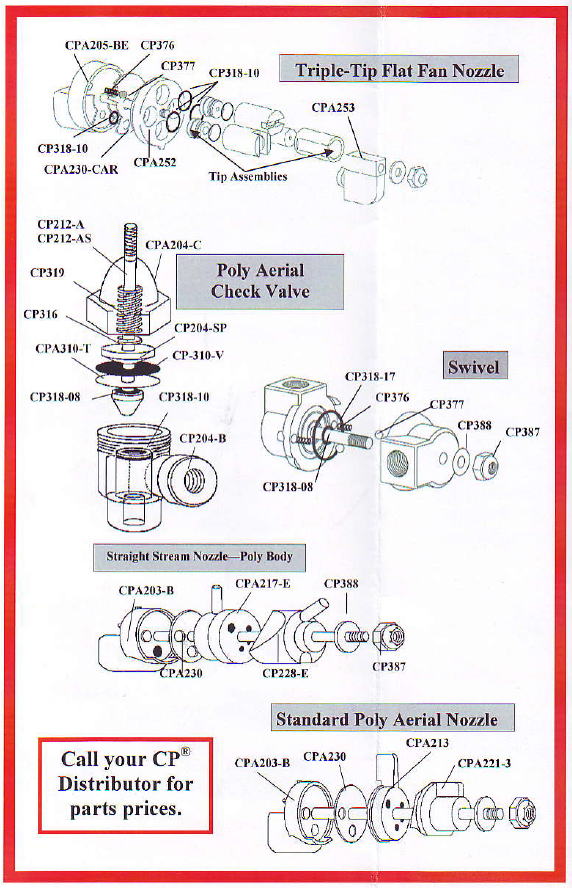

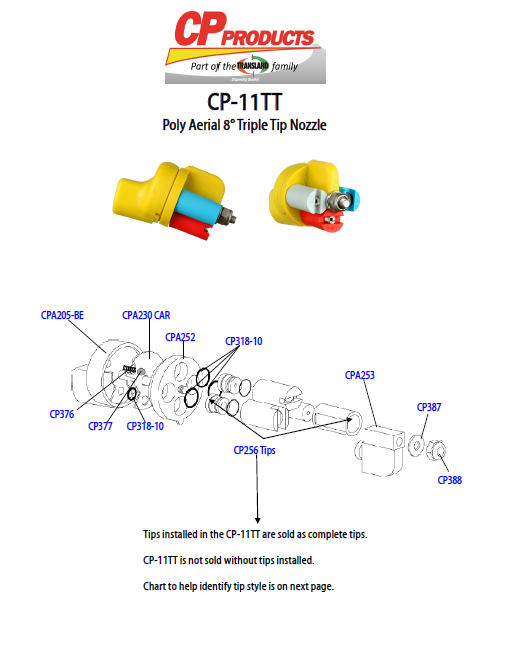

CP-11TT The NEW CP-11TT holds THREE FLAT FAN TIPS and has a SHUT OFF.

Price includes 3 tips of the Pilot's choice.
CP-06 The NEW CP-06 CP ® SWIVEL

CP-01-3

CP-03
CP-01-03 Stainless Steel Aerial Nozzle. Three Way Deflector
CP-03 Poly Aerial Nozzle

CP-09-3e

CP-09-3p
CP-07-3E Stainless Steel Straight Stream w/ 5° & 30° Deflection
CP-09-3E Poly Straight Stream Nozzle with Stainless Selector / Deflector w/ 5° & 30° Deflection
CP-09-3P Poly Straight Stream Nozzle with Stainless Selector , Poly Deflector w/ 5° & 30° Deflection

CP-02

CP-04
CP-02 Stainless Steel Aerial Check Valve
CP-04 Poly Aerial Check Valve








































CUSTOMIZED FLAT FAN NOZZLES!

With information on the GPA, airspeed, swath width and number of nozzles, distributers can help customers choose the flat fans which will work best for their applications. For help, fax the CP "Aircraft Set-up Information" form to (480)303-0909.

Customer may choose any combination of CP® tips. Tips will be installed at the factory according to the customer specifications and can be drop shipped to the customer.


Special Variations
These nozzles and check valves are produced on special order in small quantities. They are listed so that distributers can meet customers' special needs.

CP-01-03BT Stainless Steel Nozzle, Stainless Selector has .100 Orifice instead of .125, "B" Special
CP-11-3L "Low Volume" Stainless Steel Nozzle Stainless Selector with .031, .046, .062 and 093 Orifices, Special 3-Way Selector
CP-15-03BT Poly Nozzle, Stainless Selector has .100 Orifices instead of .125, "B" Special 3-Way Stainless Deflector
CP-15-3L "Low Volume" Poly Nozzle, Stainless Selector with .031, .046, .062 and .093 Orifices, Special 3-Way SS Selector
CP-09-3PA Poly Straight Stream Nozzle Stainless Selector, Poly Deflector w/30° and 90° Deflection
CP-03-05 Poly Nozzle, 5-Hole Selector (.093 added) No Shut-off
CP-05-03 Poly Nozzle, Stainless Selector Poly Deflector

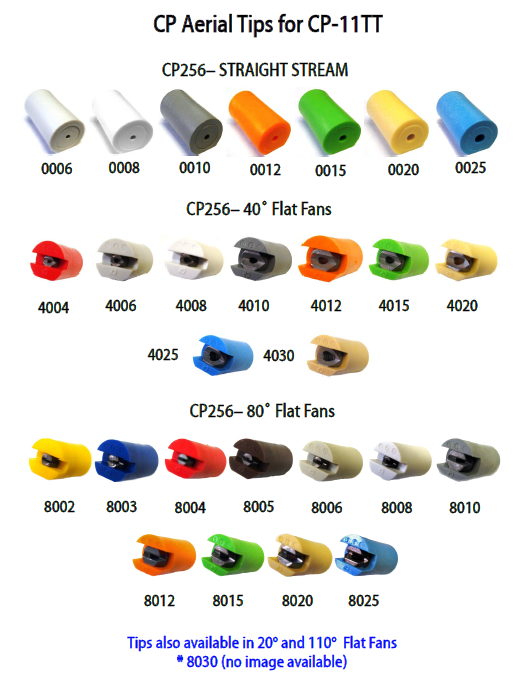

Part # CP 40° and 80° Flat Fans
CP Straight Stream Tips
CP-A256-8002 CP® 80° Flat Fan - Yellow
CP-A256-4004 CP® 40° Flat Fan - Red
CP-A256-8004 CP® 80° Flat Fan - Red
CP-A256-4006 CP® 40° Flat Fan - Light. Gray
CP-A256-8006 CP® 80° Flat Fan - Light. Gray
CP-A256-4008 CP® 40° Flat Fan - White
CP-A256-8008 CP® 80° Flat Fan - White
CP-A256-0008 CP® Straight Stream Tip - White
CP-A256-4010 CP® 40° Flat Fan - Dark Gray
CP-A256-0010 CP® Straight Stream Tip - Dark Gray
CP-A256-4012 CP® 40° Flat Fan - Orange
CP-A256-0012 CP® Straight Stream Tip - Orange
CP-A256-4015 CP® 40° Flat Fan - Light Green
CP-A256-0015 CP® Straight Stream Tip - Light Green
CP-A256-4020 CP® 40° Flat Fan - Light Yellow
CP-A256-0020 CP® Straight Stream Tip - Light Yellow
CP-A256-4025 CP® 40° Flat Fan - Light Blue
CP-A256-0025 CP® Straight Stream Tip - Light Blue
CP-A256-4030 CP® 40° Flat Fan - Tan

Check Valve Patent #5,190,074 Carousel Pantent #5,884,847 Swivel Patent Pending
